[SandJunkie]

Since Glamis season is upon us, I have been asked several times the last couple of days how to hook up a lighted whip...so here it is for those that have been wanting to attempt it...The mods can move this as usual once they feel like it...

First go to your local Auto Zone and buy this kit...it's in with the trailer hitches and stuff

Look under you quad and find the tailight plug harness

Turn your key on and find voltage so you know which wire to cut into for power

Now take your Auto Zone harness that you bought and cut it in half

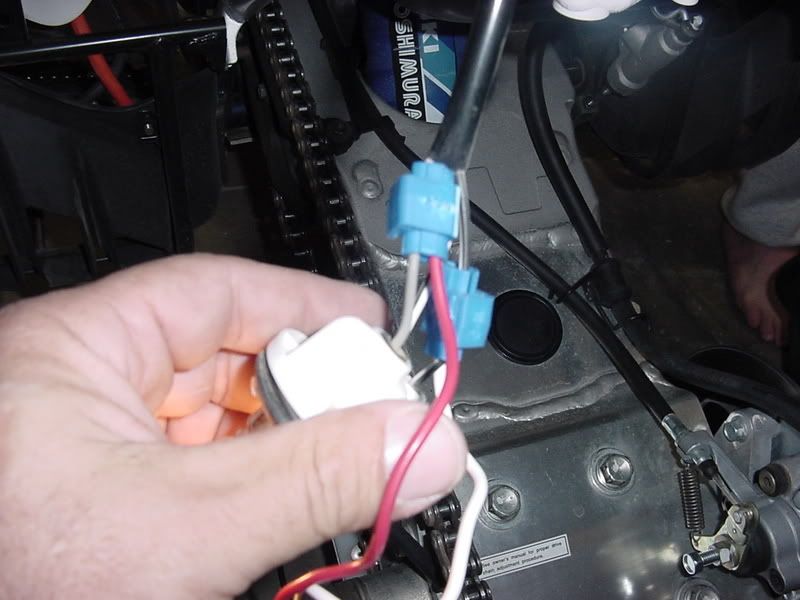

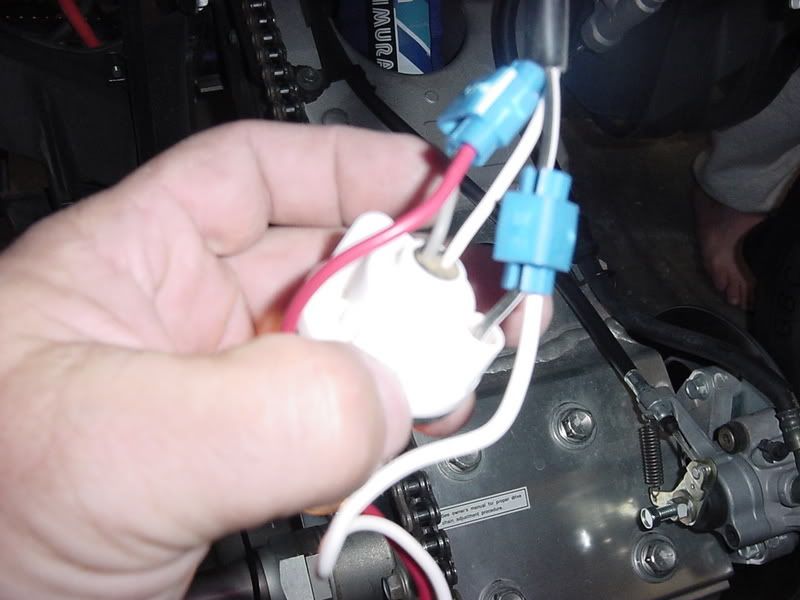

Use blue tap-in connectors to tap into the hot wire and the ground wire nearest the rear light. Use the same wires in the harness you tested back in the begining of the thread

Strip back your wires on the lighted whip

Use butt conectors to connect the other half of the Auto Zone harness to the lighted whip and cover with heat shrink wrap

Now you can plug in the Auto Zone harness to the other half of the Auto Zone harness and test

If you have any problems double check your connections..but it's pretty straight forward. You can do all this without the Auto Zone wiring harness. Some people use just male/female conenctors BUT you could possibly work the wires loose and need new connectors. I liked the finish and fit...and it looks more like a factory harness to me...

And there ya go...

The finished product should look like this...



[XxGlamisDunerxX]

Nice Junkie



[tomltr450]

good job junkie a person on another site just asked me if i knew how to do this. now he get pics and all thanks for writing this up!



[rugger]

Thanks for the pics



[Bad Gas]

Got the Rolo in, nice job Junkie. Where did u get the lighted flag?



[alx]

great job, now i have something to play with this week other then installing my new tires and grips.



[SandJunkie]

Flag is just a Stiffy...you can get them at www.quadflags.com



[theonlyloaf]

Nice write up junkie. Just one thing make sure to check that your going into the running light cause if you go into the brake light then, he he it will only come on when you the the stoppers. :lol:

oh and you said Stiffy......heh



[MXQuadRacer]

oh and you said Stiffy......heh
[/b]

Was hoping I wasn't the only one immature enough to laugh at that

Thread moved



[theonlyloaf]

Was hoping I wasn't the only one immature enough to laugh at that

Thread moved
[/b]

Of course not, maturity is overrated!



[OKTRX450R]

Flag is just a Stiffy...you can get them at www.quadflags.com


[/b]

Have you seen the "wired whips"? They are pretty sweet...http://www.wiredwhips.com



[AL Elks]

EXCELLENT post as usual!



Thanks!



[kidsdad0101]

Junk, your getting lazy man. How come the wires and duc tape arent junkie fibered?



[SandJunkie]

Junk, your getting lazy man. How come the wires and duc tape arent junkie fibered?
[/b]

I'm totally unappreciated in my time... :lol:

And thats SHRINK WRAP...not duct tape ya boob!...



[kidsdad0101]

I'm totally unappreciated in my time... :lol:

And thats SHRINK WRAP...not duct tape ya boob!...
[/b]

lol, havent been called a boob since.....well shit my Grand Mother, when I was like 6. Dating yourself again, ya ninny.



[gerber]

i just bought one a few weeks ago. u will see it at the pismo race... its nice..



[alx]

jim are these bright enough?

EBAY



[SandJunkie]

Ohhh..not to bad...might try those...



[onesavage]

lighted whip you say? :lol: hmmmn? now if i ever get one i will know how to wire it up
i will just wait to get it and wire it all at junkies house on my next trip down there :huh:
i mean that is the junkie way to do things



[SandJunkie]

But of course...I wouldn't have it any other way... :lol:
